Services


Our Quality stander meets the customer needs and time delivery, we are in to the CNC machine jobs over the 9 years of Experience in the Mechanical industry.

Our Services

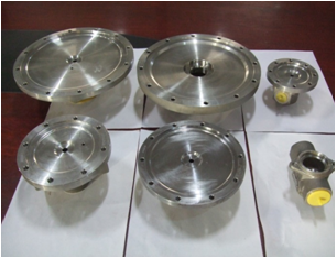

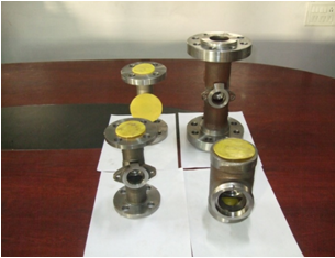

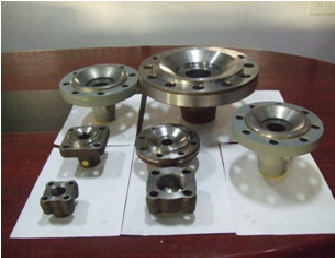

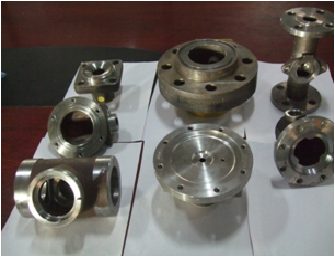

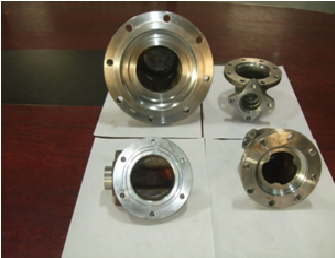

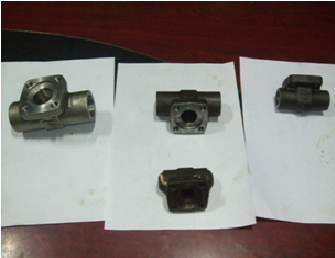

We are at present manufacturing more than 30 varieties of Valve components for Valve industries. The following in-house facilities are available with us:

  • Rough Machining.
  • CNC Turning
  • VMC Machining.
  • Drilling & Tapping
  • Hydro Testing.
  • CMM Inspection

We have dedicated sub-contractors in the following field:


  • Blank cutting
  • Stellite welding
  • Planting & Metal Finishing
  • Heat Treatment
  • Grinding

Machine Details

1. CNC Turning Center

Model: SLANT TURN-15 Make: MAZZAK - 1 No Equipped with Ø200mm – 3Jaw Chuck : 1No

Major Specifications.

Swing Over Beb : 380mm
Max. Turning Diameter : 240mm
Main spindle: Spindle Nose : A2-6"
Bore through Spindle : 50mm
Maximum spindle speed : 10-3000rpm
Motor Power : 7.5/11 kw
Turret make : Hydralic
No.of Stations : 8 Nos
Max. Swing Interference : 200mm
Tool Shank/ Bar :25x25and dia 40mm
CNC System Make/ Model :SEMENS 802D

2. CNC Turning Center

Model: FTC- 280 Make: FEELER - 1No Equipped with Ø250mm – 3Jaw Chuck : 1No Ø250mm - 2Jaw Chuck : 1No

Major Specifications.

Swing Over Beb : 700mm
Distance Between Centers : 1000mm
Max. Turning Diameter : 280/700mm
Main spindle: Spindle Nose : A2-8"
Bore through Spindle : 80mm
Maximum spindle speed : 10-3000rpm
Motor Power : 15 kw
Turret make : Hydralic
No.of Stations : 12 Nos
Max. Swing Interference : 300mm
Tool Shank /Bar : 25x25xand dia 45mm
Tail stock quill Diameter/Stroke : 200x100mm
Quil Taper : MT4
Tool Shank/ Bar : 25x25and dia 40mm
CNC System Make/ Model : FANUC, OT
Spindle load capacity : 200

3. CNC Turning Center

Model: SL-3 Make: MORISEIKI - 2 Nos Equipped with Ø250mm – 3Jaw Chuck : 1No

Major Specifications.

Swing Over Beb : 580mm
Distance Between Centers : 800mm
Max. Turning Diameter : 240/500mm
Main spindle: Spindle Nose : A2-6"
Bore through Spindle : 56mm
Maximum spindle speed : 10-3000rpm
Motor Power : 15 kw
Turret make : Hydraulic
No. of Stations : 12 Nos
Max. Swing Interference : 250mm
Tool Shank /Bar : 25x25xand dia 45mm
Tail stock quill Diameter/Stroke : 200x100mm
Quill Taper : MT3
Tool Shank/ Bar : 25x25and dia 40mm
CNC System Make/ Model : FANUC 3T
Spendle load capacity : 200kg
